In industrial environments, the safety of personnel and the integrity of operations greatly depend on accurate gas detection and rapid alarm response. From chemical plants to oil refineries, even small fluctuations in hazardous gas levels can lead to costly downtime, equipment damage, or serious accidents.
The Teledyne Detcon Model X40 Integrated Alarm and Control System offers a reliable, all-in-one solution, combining real-time gas monitoring with advanced alarm management and control features. Designed for demanding conditions, the X40 helps industries maintain compliance, protect employees, and ensure uninterrupted operations.
In this article, we will explore the key features and applications of the X40 system, and why it stands out as a trusted solution for industrial gas detection and alarm control.
Overview of the Teledyne Detcon Model X40
The Teledyne Detcon Model X40 is a low-power alarm and control system designed to monitor multiple gas sensors and other field devices. It supports 4-20 mA DC and Serial RS-485 Modbus inputs, providing flexibility for a variety of industrial applications.
The system comes in two configurations. The X40-8 powers up to eight field devices and accommodates six I/O modules, while the X40-32 can support up to 32 devices and twelve I/O modules. Stackable DIN-rail I/O modules, including analog input/output, alarm relay, and contact input types, can be installed within the main enclosure or remotely to simplify wiring.
Programming the X40 is simple and can be done using a handheld magnet. The system also features embedded intelligence for intuitive operation. Its backlit LCD displays real-time readings and device status, showing alarm conditions, channel number, gas type, and concentration for up to eight devices, with automatic cycling through active channels.

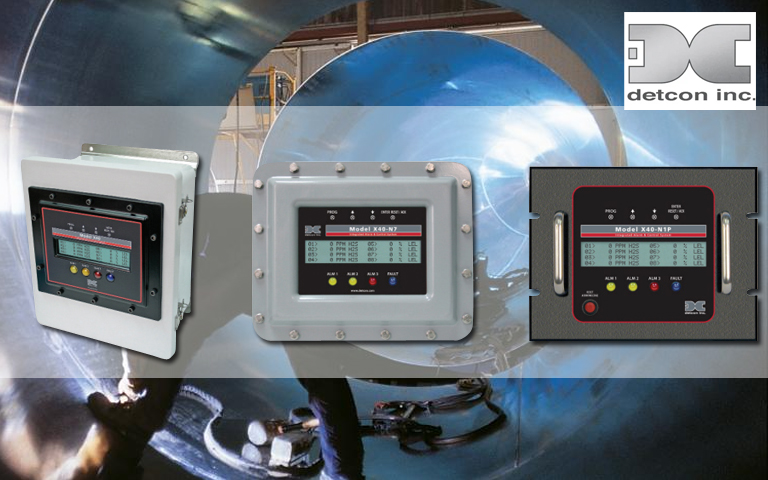

For additional flexibility, the system offers a wireless option compatible with RXT-320 SmartWireless transceivers. The X40 is available in multiple enclosure options such as NEMA 4X, NEMA 1 panel mount, and NEMA 7, making it suitable for diverse industrial environments.
Key Features of the Detcon Model X40 Alarm and Control System
The Teledyne Detcon Model X40 Integrated Alarm and Control System offers a range of advanced features designed to enhance gas detection and alarm control in industrial environments. The following key features highlight the system's flexibility, reliability, and ease of use.
- 8 to 32 channel capacity
The X40 can monitor between 8 and 32 field devices, making it suitable for both small and large industrial installations. This flexibility allows operators to scale the system according to the size and complexity of their facility.
- Backlit LCD screen display
The backlit LCD provides clear, real-time readings and device status for up to eight channels simultaneously. Automatic cycling through active channels ensures operators can quickly review all critical information at a glance.
- Analog or RS-485 input options
The system supports both 4-20 mA analog and RS-485 Modbus inputs, allowing compatibility with a wide range of sensors and field devices. This versatility ensures seamless integration into existing industrial setups.
- Easy intuitive field configuration
Programming the X40 is straightforward using a handheld magnet, eliminating the need for complex tools or software. The intuitive interface simplifies calibration and setup, reducing installation time.
- Wire or distributed I/O
Operators can connect I/O modules directly within the main enclosure or remotely to simplify field wiring. This distributed approach minimizes clutter and allows for flexible system layouts.
- Extensive event data logging
The X40 records detailed event logs, including alarm history, gas readings, and device status. This feature helps facilities track performance, troubleshoot issues, and maintain compliance with safety regulations.
- SmartWireless capable
The system is compatible with RXT-320 SmartWireless transceivers, enabling wireless communication between devices. This capability allows for easier installation and expanded monitoring without extensive cabling.
Applications of the Teledyne Detcon Model X40
The Detcon Model X40 is designed for a wide range of industrial environments where accurate gas detection and alarm control are critical for safety and operational efficiency. It is used across multiple sectors to monitor hazardous and process gases, including the following:
- Oil and gas drilling rigs
The X40 continuously monitors gases such as hydrogen sulfide, methane, and carbon monoxide on drilling rigs, where hazardous leaks can occur. Its integrated alarm and control system ensures rapid response to prevent accidents and protect both personnel and equipment.
- Oil and gas production sites
Production facilities can track multiple gases including hydrogen sulfide, carbon monoxide, and combustible gases in real time. This enables operators to maintain safe conditions, reduce the risk of explosions, and comply with industry safety standards.
- Offshore production platforms
Space and accessibility on offshore platforms are limited, making reliable monitoring crucial. The X40's compact design, remote I/O capability, and wireless option allow for accurate detection of hydrogen sulfide, methane, and other flammable or toxic gases in challenging environments.
- Wastewater treatment plants
Gases such as hydrogen sulfide, methane, and ammonia can accumulate in wastewater facilities. The X40 provides continuous detection and alarms, safeguarding workers from toxic exposure while supporting smooth plant operations.
- Food and beverage processing
Controlled gases like carbon dioxide and nitrogen are common in food and beverage processes. The X40 ensures safe handling of these gases, preventing asphyxiation hazards and maintaining product quality.
- Pulp and paper mills
Operations in pulp and paper mills can release hazardous gases like chlorine, sulfur dioxide, and hydrogen sulfide. The X40 accurately monitors these gases and provides timely alarms, protecting workers and preventing equipment damage.
- Refining and petrochemical
Refineries and petrochemical plants handle flammable and toxic gases including hydrogen sulfide, carbon monoxide, and hydrocarbons. The X40's integrated alarm and control functions help prevent accidents, protect personnel, and maintain compliance with regulatory standards.
PE Energy: Your Trusted Supplier for Detcon Gas Detectors
PE Energy is a trusted, authorized distributor of Detcon gas detectors, providing high-quality products at competitive rates. We offer bulk ordering options to simplify procurement for companies managing large-scale industrial projects. With worldwide shipping and fast delivery times, your detectors arrive quickly, no matter where your operations are based.
Our inventory includes a wide selection of Detcon gas detection solutions, such as the Teledyne Detcon TP-700 Hydrogen Sulfide Sensor, Teledyne Detcon Model 100 Toxic Gas Sensor, the Teledyne Detcon FP-700 Combustible Gas Sensor, and the Teledyne Detcon Model 1000 Carbon Dioxide Analyzer. From replacing a single unit to equipping an entire facility, PE Energy ensures you have the right gas monitoring solutions ready when you need them.
Get in touch today to request a quote and secure reliable Detcon gas detectors for your industrial operations.
